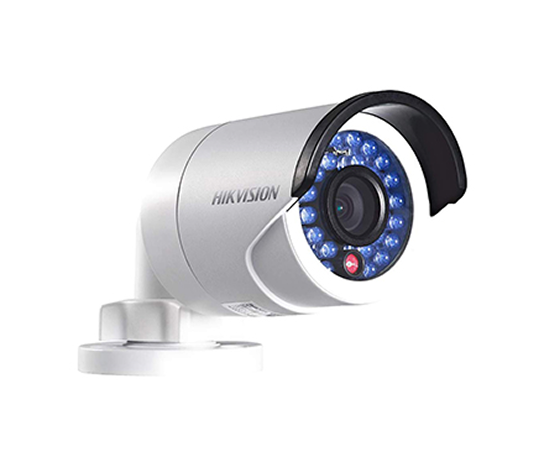

DS-2CE1AD0T-IRPF

2MP CMOS camera, 1080p HD output, Smart IR (20m), Day/Night, IP66 rated.

Key Features:
2 megapixel high performance CMOS
Analog HD output, up to 1080p resolution
Day/Night switch
Smart IR
Up to 20 m IR distance
Switchable TVI/AHD/CVI/CVBSIP66
Send Inquiry
Features
IPC2128LR3-DPF28M-F
IPC2128LR3-DPF40M-F
Sensor
1/3", 8.0 megapixel, progressive scan, CMOS
1/3", 8.0 megapixel, progressive scan, CMOS
Lens
2.8mm@F2.0
4.0mm@F2.0
DORI Distance
Detect: 84m, Observe: 33.6m, Recognize: 16.8m, Identify: 8.4m
Detect: 120m, Observe: 48m, Recognize: 24m, Identify: 12m
Angle of View (H)
112.7°
2.8mm@F2.0
Angle of View (V)
60.1°
60.1°
Angle of View (D)
146.5°
146.5°°
Adjustment Angle
Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360°
Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360°
Shutter
Auto/Manual, 1~1/100000 s
Auto/Manual, 1~1/100000 s
Minimum Illumination
0.05 Lux (F2.0, AGC ON), 0 Lux with IR on
0.05 Lux (F2.0, AGC ON), 0 Lux with IR on
Digital Noise Reduction
2D/3D DNR
2D/3D DNR°
Day/Night
IR-cut filter with auto switch (ICR)
IR-cut filter with auto switch (ICR)
S/N
>56dB
>56dB
IR Range
Up to 30m (98 ft)
Up to 30m (98 ft)
Wavelength
850nm
850nm
IR On/Off Control
Auto/Manual
Auto/Manual
Defog
Digital Defog
Digital Defog
WDR
120dB
120dB
Video Compression
Ultra 265, H.265, H.264, MJPEG
Ultra 265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 8MP (3840x2160) Max. 20 fps; 5MP (2944x1656) Max. 30 fps
Main Stream: 8MP (3840x2160) Max. 20 fps; 5MP (2944x1656) Max. 30 fps
Video Bit Rate
128 Kbps~16 Mbps
128 Kbps~16 Mbps
OSD
Up to 4 OSDs
Up to 4 OSDs
ROI
Up to 2 areas
Up to 2 areas
Motion Detection
Up to 4 areas
Up to 4 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR
Supported
Supported
Flip
Normal/Vertical/Horizontal/180°
Normal/Vertical/Horizontal/180°
HLC
Supported
Supported
BLC
Supported
Supported
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration
ONVIF(Profile S, Profile T), API
ONVIF(Profile S, Profile T), API
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Network
10/100M Base-TX Ethernet
10/100M Base-TX Ethernet
Certifications
CE: EN 60950-1, UL: UL60950-1, FCC: FCC Part 15
CE: EN 60950-1, UL: UL60950-1, FCC: FCC Part 15
Power
12 V DC±25%, PoE (IEEE802.3 af), Max 5.5W
12 V DC±25%, PoE (IEEE802.3 af), Max 5.5W
Dimensions (L × W × H)
167.3×62.9×62.7mm (6.6”×2.5”×2.5”)
167.3×62.9×62.7mm (6.6”×2.5”×2.5”)
Net Weight
0.45kg (0.99lb)
0.45kg (0.99lb)
Material
Metal
Metal
Operating Environment
-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Surge Protection
2KV
2KV
Ingress Protection
IP67
IP67
Reset Button
Supported
Supported
